Specifications

  • Manufacturer: KTM

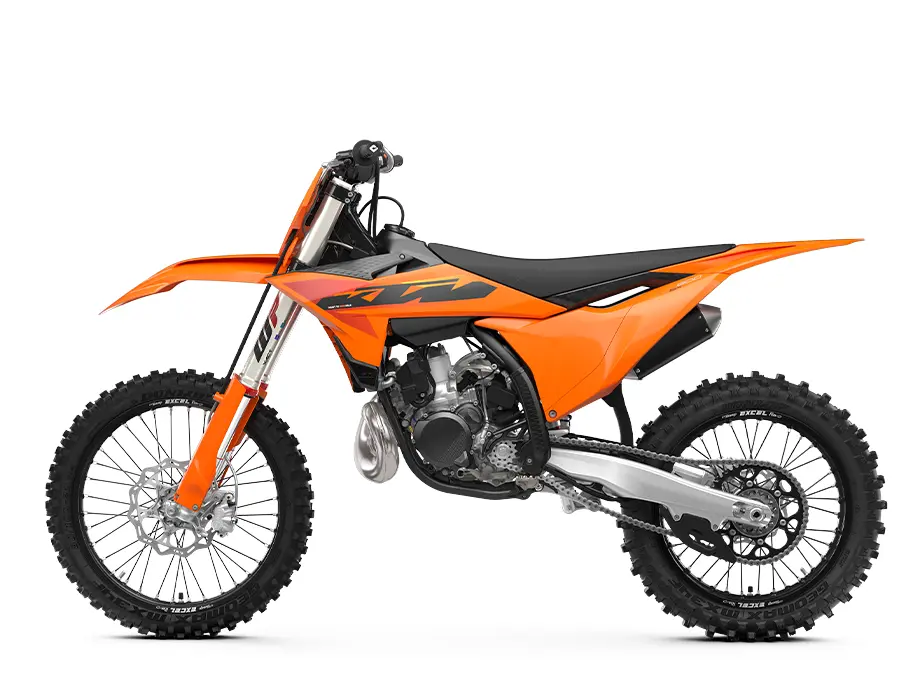

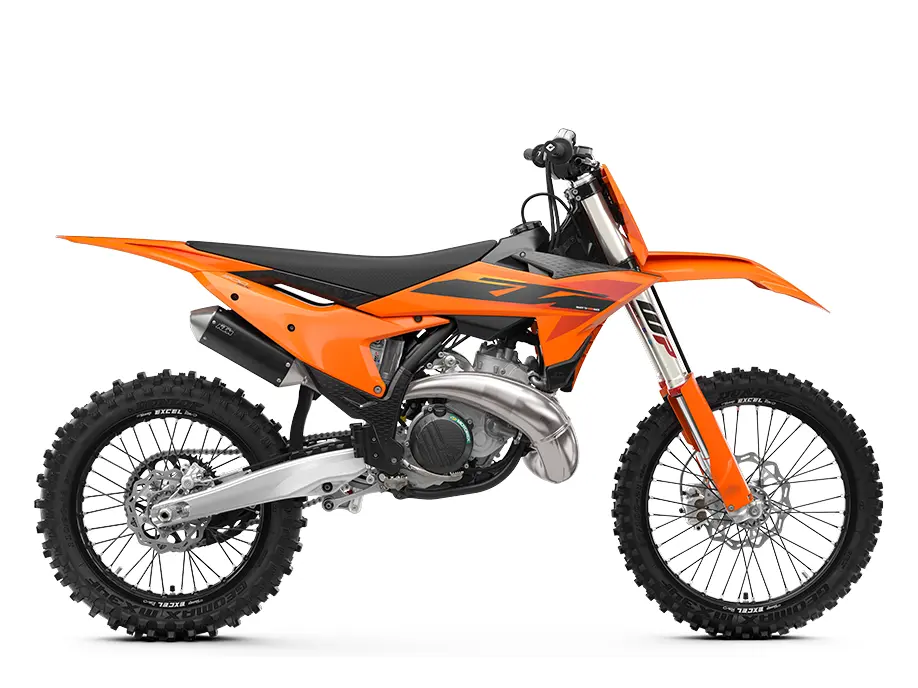

  • Model: 300 SX
  • Year: 2025
  • Type: Motocross
  • Transmission: 5-speed
  • Starter: Electric starter
  • Stroke: 72 mm
  • Bore: 72 mm
  • Clutch: Wet, DDS multi-disc clutch, Brembo hydraulics
  • Displacement: 293.2 cm³
  • EMS: Vitesco Technologies EMS
  • Design: 1-cylinder, 2-stroke engine
  • Fuel-mixture generation: Keihin EFI, throttle body 39 mm
  • Weight (without fuel): 99.4 kg
  • Tank capacity (approx.): 7.2 l
  • Wheelbase: 1493 mm
  • Front brake disc diameter: 260 mm
  • Rear brake disc diameter: 220 mm
  • Front brake: Disc brake
  • Rear brake: Disc brake
  • Chain: 520, Non-sealed
  • Frame design: Central double-cradle-type 25CrMo4 steel
  • Front suspension: WP XACT-USD (AER), Ø 48 mm
  • Ground clearance: 354 mm
  • Handlebar: Neken, aluminium Ø 28/22 mm
  • Rear suspension: WP XACT Monoshock with linkage
  • Seat height: 958 mm
  • Silencer: Aluminium
  • Steering head angle: 63.9 °
  • Rear subframe design: Aluminum-reinforced polyamide
  • Suspension travel (front): 310 mm
  • Suspension travel (rear): 300 mm
  • Wheels: Spoked wheels with aluminium rims
