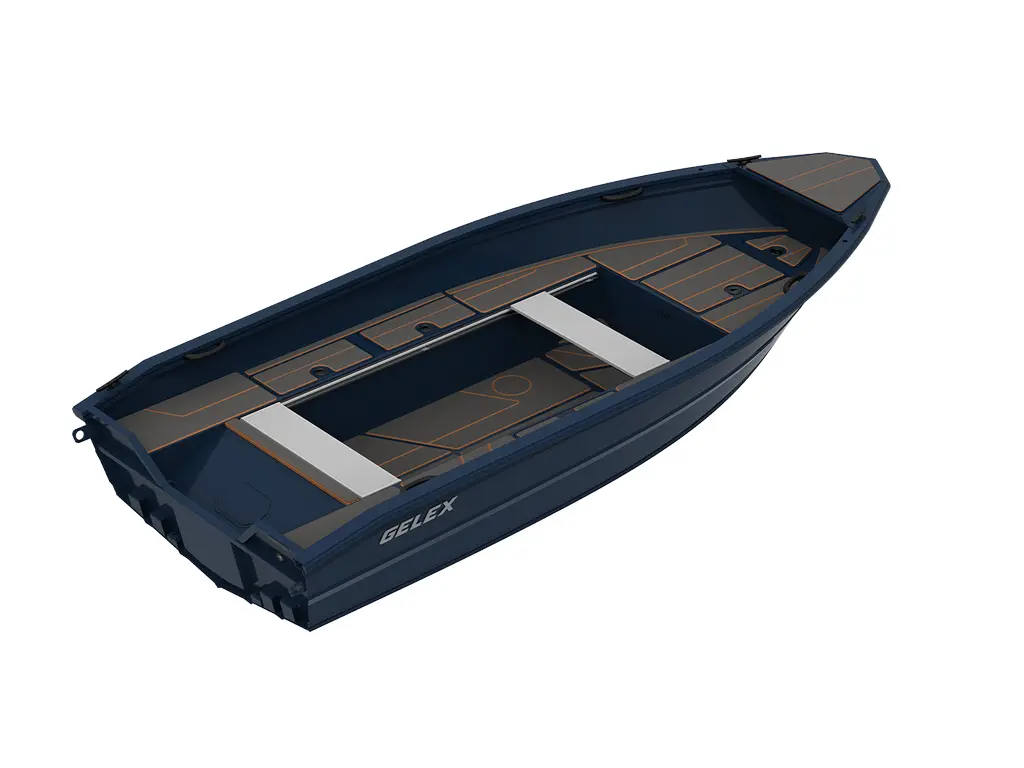

2023 GELEX Gelex 390

Notes:

CHARACTERISTICS Weight* 180 kg
396 lbs Length 3930 mm
12' 11" ft/inches Width 1640 mm
5' 4" ft/inches Height 710 mm
2' 4" ft/inches   Transom height 381/508 mm
1'3"/1'8" ft/inches Maximum engine power 30 HP
22.1 kW Recommended engine power 20 HP
14.7 kW Maximum engine weight 70 kg
154 lbs Maximum loading capacity 320 kg
704 lbs Passengers capacity 3 pers Deadrise on the middle 15° deg Deadrise on the transom 12° deg Draft 250 mm
10" ft/inches Sheet thickness
board / bottom 2.5/2.5 mm
0.1"/0.1" inches Boat category EU D *Weight with basic equipment

STANDARD FEATURES

• The hull is completely painted with gray polyester powder paint (RAL 7011);
• Reinforced bow platform with the possibility of installing additional equipment (anchor winch, electric anchor);
• T-shaped profile for the installation of movable seats, a sofa and other equipment on both sides of the on board cockpit niches;
• Insert elements for the rack under the seat 2 pcs;
• Hinges of locker covers;
• Stainless locks lockers covers;
• Rubrail dark gray PVC profile, fixed in the external T-slot;
• Bow cleat 1 pc stern cleat 2 pcs;
• Internal aluminum transom cover 1 pc;
• External plastic transom cover | pc;
• Mounting platform for installing the echo sounde;
• Buoyancy blocks according to ISO 6185 standard;
• Drainage system;
• Lockers:
•    – bow self draining locker 1 pcs.
•    – board self draining locker for things and accessories storage – 3 pcs.
•    – anchor compartment 1 pc.
• Adjustable internal side handles in T slot 4 pcs;
• Keel protection;
• Polyamide mooring cleats 4 pc;
• Folding oars with a storage bag 2 pcs.

OPTIONAL EQUIPMENT

• · Painting the boat hull in a different color.
• · Exterior side wrapping with decorative film.
• · Coating the inner part of the hull with marine carpet.
• · Wrapping internal cockpit surfaces with EVA Marine Deck materials (SeaDeck).
• · Steering consoles:
•    – GC-01;
•    – GC-01L;
• · Mechanical steering system:
•    – steering wheel;
•    – gearbox;
•    – cable.
• · Removable side railings – 4 pcs.
• · Aluminum seats with fixation, with the possibility of adjustment along the entire length of the cockpit.
• · Swivel seats.
• · Aft adjustable two seater sofa platform GS 03.
• · Soft covers for aluminum seats.
• · Mooring canopy (shape depends on the installed console).
• · High-pressure pump with spray gun.
• · Electrical kit:
•    – control block (switching keys – 5 pcs., spare – 1 pc.);
•    – 12V socket;
•    – set of fuses;
•    – navigation lights (green, red);
•    – masthead light (white);
•    – mass switch;
•    – battery tray;
•    – automatic bilge pump;
• · Bag – locker under the seat.
• · Rowing kit: oars – 2 pcs., universal lock – 2 pcs.
• · Pocket – mesh for small items – 4 pcs.
• · Fishing package: rod holder on the inner side – 4 pcs.
• · Borika mounting system:
•    – platform with universal lock – 2 pcs.;
•    – additional rod holder – 2 pcs.;
•    – universal side lock on the gunwale – 2 pcs.;
•    – mounting platform for sonar installation;
•    – anchor holder with automatic stopper on the gunwale.
• · Mooring / transport canopy.
