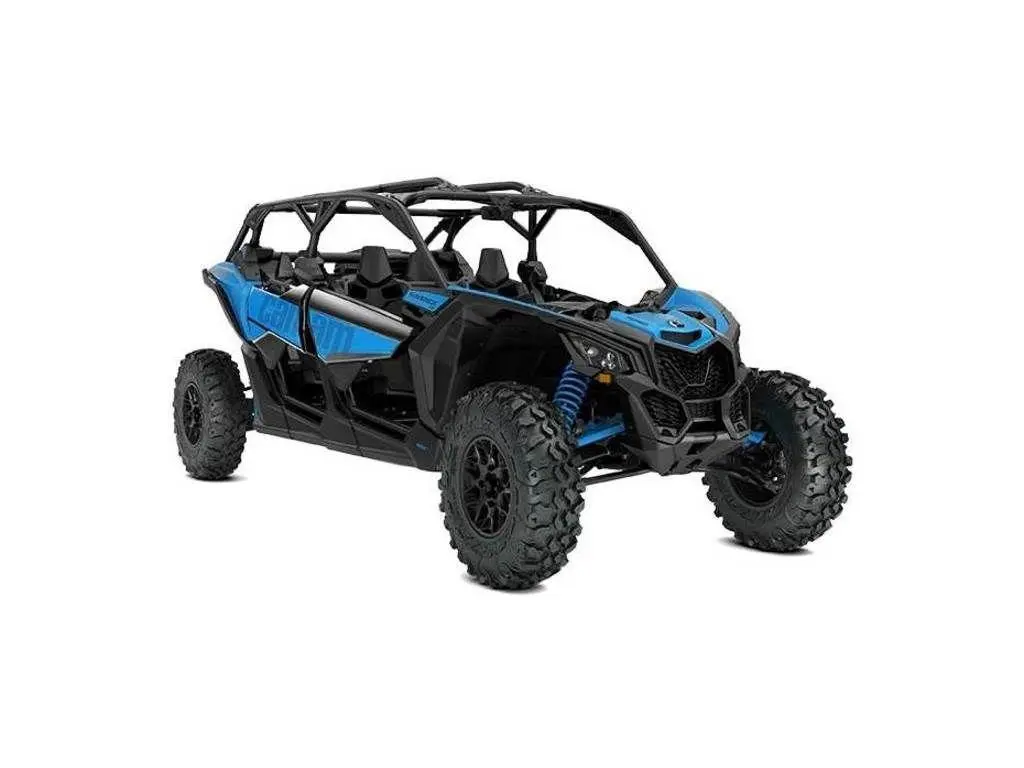

2023 Can-Am Maverick X3 DS Turbo

Notes:

DESCRIPTION
ENGINE
• Type: 135 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
• Fuel Delivery System: Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
• Transmission: pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
• Drive Train: Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL *Smart-Lok was developed in conjunction with TEAM Industries, a market leader in the drive train industry
• Power Steering: High torque Tri-Mode Dynamic Power Steering (DPS™)
TIRES/WHEELS
• Front Tires: Maxxis Carnivore® 30 x 10 / 10 x 14 in.
• Rear Tires: Maxxis Carnivore® 30 x 10 / 10 x 14 in.
• Wheels: 14 in. cast-aluminum
BRAKES
• Front: Dual 262 mm disc brakes with hydraulic twin-piston calipers
• Rear: Dual 248 mm disc brakes with hydraulic twin-piston calipers
DIMENSIONS
• L x W x H: 164 x 64 x 65.8 in. (416.6 x 162.5 x 167.1 cm)
• Wheel Base: 135 in. (342.9 cm)
• Ground Clearance: 13 in. (33 cm)
• Chassis Cage: Dual-phase 980 steel
• Estimated Dry Weight*: 1,810 lb. (821 kg)
• Rack Capacity: 150 lb. (68 kg) with LinQ™ quick-attach
• Storage Capacity: Total: 3 gal. (11.4 L)
• Fuel Capacity: 10.5 gal. (40 L)
SUSPENSION
• Front Suspension: Double A-arm with sway bar / 20 in. (50.8 cm) travel
• Front Shocks: FOX® 2.5 PODIUM Piggyback with QS3® compression adjustment
• Rear Suspension: 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
• Rear Shocks: FOX® 2.5 PODIUM Piggyback with QS3®compression adjustment and bottom-out control
FEATURES
• Gauge: 4.5 in. wide digital display with keypad
• Magneto: 650 W
• Instrumentation: DC outlet (10-A)
• Anti Theft System: RF Digitally Encoded Security System (D.E.S.S.™) with Start/ Stop button
• Lighting: LED Headlight LED tail lights
• Winch: N/A
• Protection: Integrated front bumper, Quarter-doors, HMWPE full skid plate, Rear tow hook

ENGINE
Engine Type 135 hp, Rotax ACE (Advanced Combustion Efficiency) 900 cc Turbocharged Triple-cylinder engine, liquid cooled and high-perfomance air filter
Displacement 900cc
Fuel System Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
CHASSIS
Front Suspension Double A-arm with sway bar / 20 in. (50.8 cm) travel
Front Brakes Dual 262 mm disc brakes with hydraulic twin-piston calipers
Front Tire Maxxis Carnivore® 30 x 10 / 10 x 14 in.
Rear Suspension 4-link Torsional Trailing-arm X (TTX) with sway bar / 20 in. (50.8 cm) travel
Rear Brakes Dual 248 mm disc brakes with hydraulic twin-piston calipers
Rear Tire Maxxis Carnivore® 30 x 10 / 10 x 14 in.
DIMENSIONS
Dry Weight 1,810 lb. (821 kg)
Wheelbase 135 in. (342.9 cm)
Ground Clearance 13 in. (33 cm)
Fuel Capacity 10.5 gal. (40 L)
Rack Capacity 150 lb. (68 kg) with LinQ™ quick-attach
TRANSMISSION
Transmission pDrive primary and Quick Response System X (QRS-X) CVT with high airflow, L / H / N / R / P
Drive System Lockable front Differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD TRAIL ACTIV / 4WD TRAIL
